SEWO Smart Parking System with Offline Operation Steel Tempered Glass Housing and 13.56MHz 125KHz RFID Support

Name: SEWO Smart Parking System with Offline Operation Steel Tempered Glass Housing and 13.56MHz 125KHz RFID Support
Brand: Shenzhen SEWO Science & Technology Co., Ltd.
SKU: SEWO-X6
Price: 400.00 USD
Availability: InStock

Brand Name:	SEWO
Model Number:	SEWO-X6
MOQ:	1
Price:	$800-1,000

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Document:

Product Brochure PDF

Dimension:

470*310*1370mm

Housing Material:

Steel & Tempered Glass

Support Built-in Reader:

IC/ID, Barcode

Com Mode:

RS485, Rear TCP/IP

Communication Distance:

1200m(RS485)

Data Transmission Speed:

4800bps/100m

Card Capacity:

10000pcs(Extendible)

Working Temperature:

-30℃--70℃

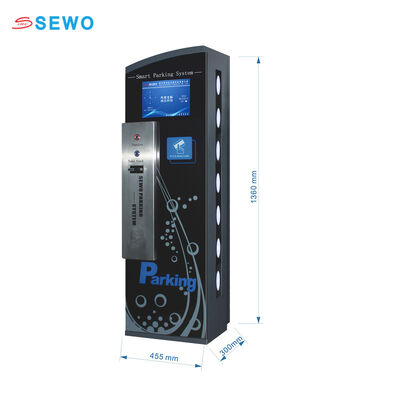

Housing Size:

455*300*1360 Mm

Display:

LED Display Screen

RFID Frequency:

13.56MHZ, 125KHZ

Offline Operation:

Supported

Waterproof Design:

Yes

Dustproof Design:

Yes

Rustproof Design:

Yes

Highlight:

Offline Operation Smart Parking System

Steel Tempered Glass Housing Parking Ticket Machine

13.56MHz 125KHz RFID Ticket Dispenser System

Product Description

SEWO Queue Ticket Dispenser System Smart Parking Ticket Management System

The SEWO Queue Ticket Dispenser System is a comprehensive smart parking management solution designed for high-traffic facilities, offering efficient ticket and card-based parking management with advanced features.

Why Choose SEWO

Over 20 years of industry experience with multiple patents and testing reports
Experienced R&D team offering comprehensive services including project design, 3D rendering, and customization
Support for small order customization with equal attention to quality

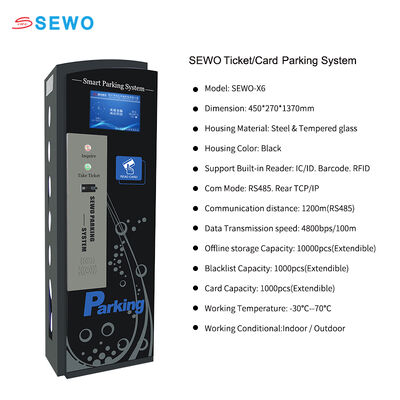

Product Specifications

Product Name	Ticket / Card Parking Management
Product No.	SEWO-X6
Housing size	4553001360 mm
Housing Material	Steel & Tempered glass
Support Built-in Reader	RFID IC / ID Card, Ticket
Display	LED display screen
Feature	Support offline running, etc.

Advanced Features

The SEWO-X6 Series Car Parking System is a comprehensive solution for managing pay-to-park facilities with high traffic flow, suitable for both hourly and registered parkers. This system is ideal for shopping malls, hotels, hospitals, airports, and other high-traffic locations.

First fully off-line system that can run without a computer
Multiple network modes for remote data and image transmission
Easy to install, debug, and maintain with testing function available
Compatible with various reader technologies (13.56MHZ, 125KHZ, Barcode, RFID, UHF)
Automatic Card/Barcode dispenser
Waterproof, dustproof, and rustproof housing design
Flexible system configuration extendable to multi-level parking lot management

System Advantages

Low-cost, completely wireless solution replacing loop detectors
Reliable operation in all weather conditions
Flexible installation with no scheduled maintenance required
Real-time secure wireless communication

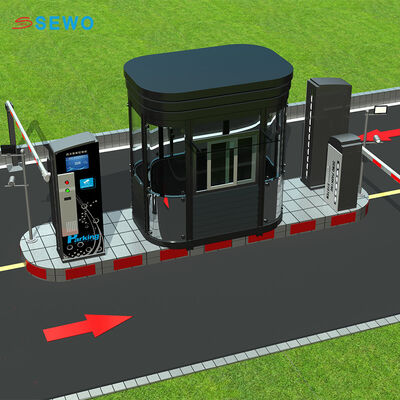

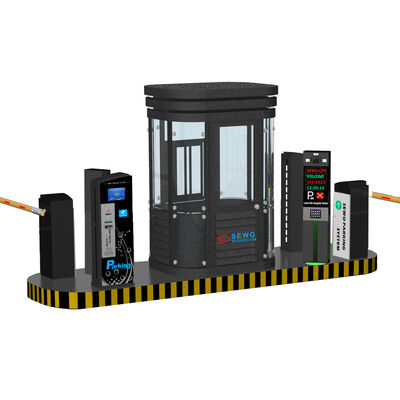

Parking Management System Working Principle

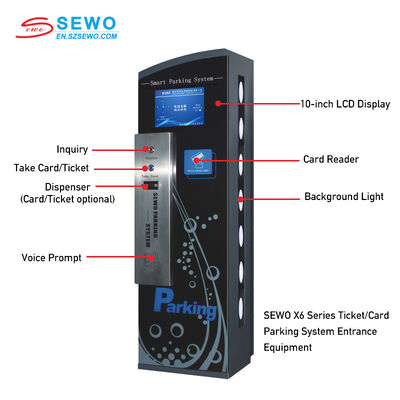

Entry Process

Vehicle covers the 1st loop coil
Driver presses the push button on entry parking case
Card dispenser issues RFID card, recording entry time and data
Boom barrier opens automatically
After vehicle passes 2nd loop coin, boom barrier closes automatically

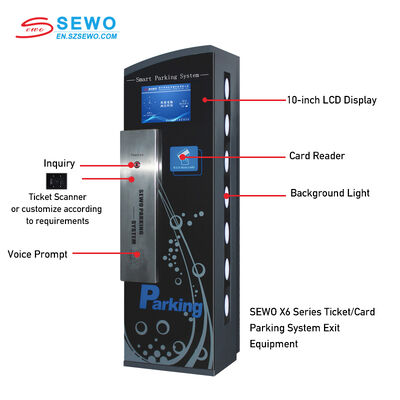

Payment and Exit Options

1. Manual Payment (Gatehouse near exit barrier)

Visitor drives to payment center station
Operator processes card in card issue device
System displays card information including duration and payment amount
After payment, operator opens barrier
Barrier closes after vehicle passes loop coil

2. Central Payment (Driver pays in central parking lot)

Visitor drives to central payment room
Cashier processes card showing duration and payment amount
After payment, card returned to driver
Driver inserts card at exit machine to open barrier
Barrier closes after vehicle passes loop coil

3. Auto Payment (Driver pays at payment machine)

Visitor places card on reader at auto-payment station
Machine displays duration and payment amount
Visitor inserts coins/notes and receives receipt
Card inserted at exit machine opens barrier
Barrier closes after vehicle passes loop coil

Customized Services

The above solutions are for reference only. Contact us with your requirements for customized solutions, competitive pricing, and excellent service.

Customer Photos

Frequently Asked Questions

1. What is the strength of your company in this industry?

Our company has focused on developing new techniques and products since 2003. Our "SEWO" brand ranks among China's top 10 car parking system brands.

2. What are your company's advantage products?

We specialize in Smart Parking Management Systems, Barrier Gates, Access Control Systems, and related security products.

3. How about product quality?

We maintain CE and ISO9001:2008 certifications with strict quality testing, earning honors including "China Top 10 Parking Management System Supplier."

4. How about customization requests?

We support OEM/ODM services with 20+ years experience providing customized access management solutions.

5. What is the delivery time?

Regular products require 5-10 working days, with actual time depending on specific requirements.
