SEWO-X6 Smart Parking System with RS485 Communication 1200m Distance and 4800bps Data Transmission

Name: SEWO-X6 Smart Parking System with RS485 Communication 1200m Distance and 4800bps Data Transmission
Brand: Shenzhen SEWO Science & Technology Co., Ltd.
SKU: SEWO-X6
Price: 400.00 USD
Availability: InStock

Brand Name:	SEWO
Model Number:	SEWO-X6
MOQ:	1
Price:	$800-1,000

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Document:

Product Brochure PDF

Model:

SEWO-X6

Dimension:

470*310*1370mm

Housing Material:

Steel & Tempered Glass

Housing Color:

Blue And Yellow

Built-in Reader:

IC/ID, Barcode, RFID

Communication Mode:

RS485, Rear TCP/IP

Communication Distance:

1200m(RS485)

Data Transmission Speed:

4800bps/100m

Offline Storage Capacity:

10000pcs(Extendible)

Blacklist Capacity:

1000pcs(Extendible)

Card Capacity:

1000pcs(Extendible)

Working Temperature:

-30℃--70℃

Working Condition:

Indoor / Outdoor

RFID Frequency:

13.56MHZ, 125KHZ

Barrier Types:

Straight Arm, Folding Arm, Fence Arm

Highlight:

RS485 Communication Smart Parking System

1200m Communication Distance Parking Management System

4800bps Data Transmission RFID Parking System

Product Description

SEWO Entrance Control Machine Car Parking Ticket Dispenser RFID Parking System

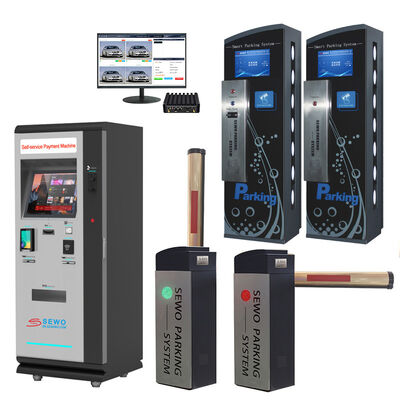

The SEWO-X6 Series Car Parking System is a comprehensive solution for managing pay-to-park facilities with high traffic flow, suitable for both hourly and registered parkers. This system includes Entry Station, Exit Station, Entry Barrier, Exit Barrier, Manual-pay-station and software, making it ideal for parking lots at shopping malls, hotels, shopping centers, exhibition centers, hospitals, and airports.

Advanced Features

Fully off-line system capable of running without a computer
Multiple network modes for remote data and image transmission
Easy installation, debugging, and maintenance with testing function
Compatible with long distance reader function and offline operation
Supports 13.56MHZ, 125KHZ, Barcode, RFID, UHF, and Bluetooth in one control board
Automatic Card/Barcode dispenser
Waterproof, dustproof, and rustproof housing design
Flexible system configuration extendible to multi-level parking lot management

Key Advantages

Low-cost, completely wireless solution replacing loop detectors
Provides wireless presence indication directly into the Controller Cabinet
Reliable operation in all weather conditions
Flexible installation for various lane configurations
No scheduled maintenance required
Real-time secure wireless communication
Unparalleled local support

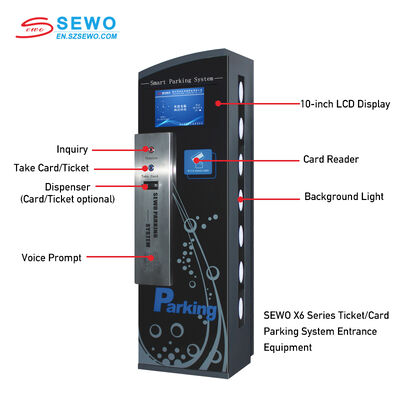

Entrance Machine

Model No.: SEWO-X6

Dispenses ticket/card to hourly parkers while registered parkers gain access by swiping proximity cards or via external long range RFID reader. Typically coupled with Entry Barriers, Loop Detectors, and optional accessories.

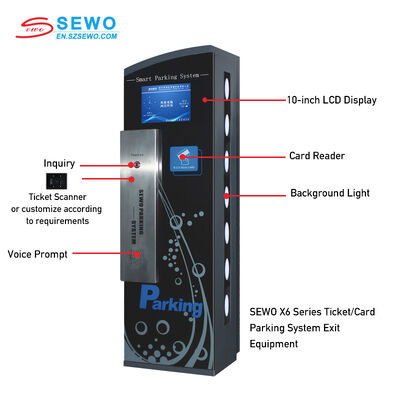

Exit Machine

Hourly parkers insert ticket/card into unmanned Exit Station, while registered parkers can leave by swiping cards or via external RFID reader. Typically coupled with Exit Barriers, Loop Detectors, and optional accessories.

Entrance/Exit Barrier

Model No.: X6 Boom Barrier

Prevents unauthorized access while permitting entry to authorized parkers. Available in three types: Straight Arm, Folding Arm, and Fence Arm.

Parking Management Software & PC

User-friendly interface with practical functions including registered parker management, charging standard setup, real-time surveillance, parking space display, event management, reporting, and card registration.

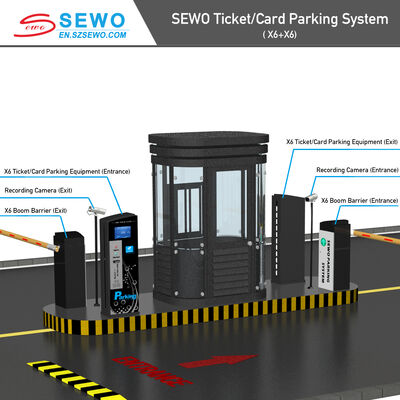

System Operation Process

Entry Procedure

Vehicle covers the 1st Loop coil
Driver presses push button on entry parking case
Card dispenser issues RFID card, recording all information including entry time
Boom barrier opens automatically
After vehicle passes 2nd loop coin, boom barrier closes automatically

Payment and Exit Options

1. Manual Payment (Gatehouse near exit barrier)

Visitor drives to payment center station
Operator inserts card into card issue device
System displays card information on LED (duration, payment amount)
After payment, operator opens barrier
Barrier closes after vehicle passes loop coil

2. Central Payment (Driver pays in central parking lot)

Visitor drives to central payment room
Cashier swipes card, system displays duration and payment amount
After payment, card returned to driver
Driver inserts card at exit machine to open barrier
Barrier closes after vehicle passes loop coil

3. Auto-payment Machine

Visitor places card on reader at Auto-payment Station
Machine displays duration and payment amount
Visitor inserts coins/notes, receives receipt
Visitor inserts card at exit machine to open barrier
Barrier closes after vehicle passes loop coil

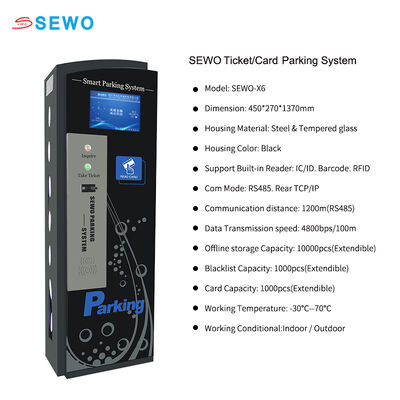

Technical Specifications

Model	SEWO-X6 Series Smart Parking Management System

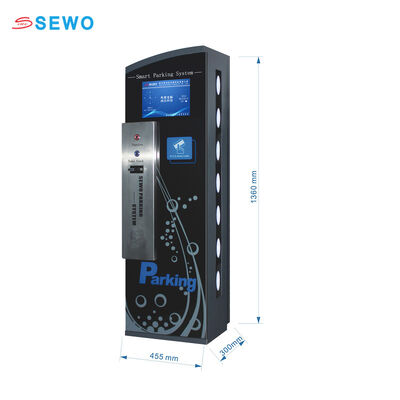

Housing Dimension	4502701370mm
Housing Material	Steel & Tempered glass
Housing Color	Black
Support Built-in Reader	IC / ID Cards ; Barcode ; RFID
Com Mode	RS485. Rear TCP/IP
Communication distance	1200m(RS485)
Data Transmission speed	4800bps/100m
Offline storage Capacity	10000pcs(Extendible)
Blacklist Capacity	1000pcs(Extendible)
Card Capacity	1000pcs(Extendible)
Working Temperature	-30℃--70℃
Working Conditional	Indoor / Outdoor

Company Profile

Shenzhen Sewo Technology Ltd. is a professional high-tech enterprise specializing in Smart Parking Management Systems, Flap Barriers, Tripod Turnstiles, Swing Gates, Parking Guidance Systems, Barrier Gates, Parking Locks, and Access Control Systems. Established in 2003, our brand "SEWO" ranks among China's top 10 parking system brands. We hold CE and ISO9001:2008 certifications and serve customers worldwide with our extensive sales and service network.

Frequently Asked Questions

1. What is the strength of your company in this industry?

Our company focuses on developing new techniques and products since 2003. Our brand "SEWO" ranks among China's top 10 parking system brands.

2. What are your company's advantage products?

We specialize in Smart Parking Management Systems, Flap Barriers, Tripod Turnstiles, Swing Gates, Parking Guidance Systems, Barrier Gates, Parking Locks, and Access Control Systems.

3. How about the quality of your products?

We hold CE and ISO9001:2008 certifications with strict quality testing systems. Our professional R&D team continuously creates high-quality products and services.

4. Do you support customization requests?

We provide OEM/ODM services with over 20 years of industry experience, offering not just products but complete smart access management solutions.

5. Do you have after-sales service agents?

We provide lifetime technical support through our global network of branch offices and agents across Southeast Asia, Middle East, Africa, Europe, and America.

6. What is your delivery time?

Regular products: 3-7 working days. Customized products: 5-15 working days (varies by product requirements).
