SEWO Automatic Payment Parking Ticket System with Offline Operation and Steel & Tempered Glass Housing
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | SEWO |
| Model Number | X6 |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 2 |
| Price | $600-900 |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Dimension | 450*270*1370mm | Housing Material | Steel & Tempered Glass |
|---|---|---|---|
| Working Temperature | -30°C To +70°C | Working Humidity | ≤95% Non-condensing |
| Working Voltage | AC220V±10% 50Hz | Built-in Reader | IC/ID/Barcode |
| Communication Mode | RS485, TCP/IP | Transmission Distance | 1200m (RS485) |
| Display Type | LED Display Screen | Offline Support | Yes |
| RFID Frequency | 13.56MHz, 125kHz | Waterproof Design | Yes |
| Dustproof Design | Yes | Rustproof Design | Yes |
| Card Dispenser | Automatic | ||
| Highlight | Automatic Payment Parking Ticket System,Offline Operation Smart Parking System,Steel & Tempered Glass Housing Car Parking Ticket Dispensing Machine |
||
Product Description
SEWO Parking Lot Automatic Payment System
The SEWO Parking Ticket Dispensing Machine provides efficient vehicle entrance and exit access control for parking facilities.
Why Choose SEWO
Our Featured Services
- 20+ years of industry experience with multiple patents and testing reports
- Experienced R&D team offering comprehensive services including project design, 3D rendering, and customization
- Small order customization available with equal attention to quality

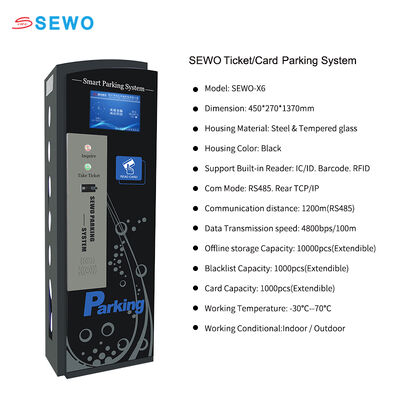

Product Specifications
| Product Name | Ticket/Card Parking Management |
|---|---|
| Product No. | SEWO-X6 |

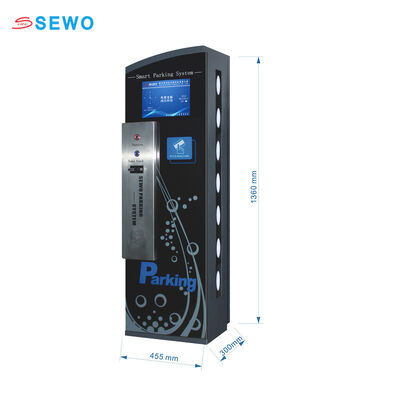

| Housing Size | 455*300*1360 mm |
| Housing Material | Steel & Tempered glass |
| Built-in Reader Support | RFID IC/ID Card, Ticket |
| Display | LED display screen |
Advanced Features
The SEWO-X6 Series is a comprehensive parking management solution for high-traffic facilities, suitable for shopping malls, hotels, hospitals, airports and more.
- Fully off-line operation capability (no computer required)
- Multiple network modes for remote data transmission
- Easy installation and maintenance with testing functions
- Supports multiple card technologies (13.56MHZ, 125KHZ, Barcode, RFID, UHF)
- Waterproof, dustproof and rustproof housing design
- Scalable to multi-level parking lot management
System Advantages
- Low-cost wireless solution replacing loop detectors
- Reliable operation in all weather conditions
- Flexible installation options
- No scheduled maintenance required
- Real-time secure wireless communication

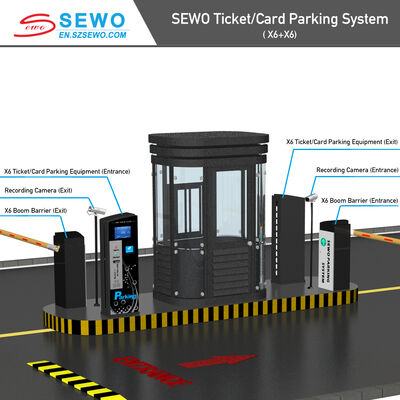

Parking Management System Operation
Entry Process:
- Vehicle covers the first loop coil
- Driver presses button on entry station
- System dispenses RFID card and records entry data
- Barrier opens automatically
- Barrier closes after vehicle passes second loop coil
Exit Process - Manual Payment:
- Driver presents card at payment station
- Operator processes card to display parking duration and fee
- After payment, operator opens barrier
- Barrier closes after vehicle passes loop coil
Exit Process - Central Payment:
- Driver pays at central payment room
- Cashier returns card after payment
- Driver inserts card at exit to open barrier
Exit Process - Auto Payment:
- Driver places card on auto-payment reader
- Machine displays fee and accepts payment
- Driver uses card at exit to open barrier
Customized Solutions
We provide tailored parking management solutions to meet specific requirements. Contact us for customized solutions, competitive pricing, and excellent service.
Customer Installations
Frequently Asked Questions
1. What is the strength of your company in this industry?
SEWO has been a top 10 parking system brand in China since 2003, with continuous focus on new technology development.
2. What are your company's advantage products?
We specialize in smart parking management systems, barrier gates, access control systems and related security products.
3. How about product quality?
Our products meet CE and ISO9001:2008 standards, with multiple industry awards for quality and service.
4. Do you support customization?
We offer OEM/ODM services with 20+ years experience in creating customized access management solutions.
5. What is the delivery time?
Regular products ship in 5-10 working days, with custom solutions depending on requirements.
