SEWO Long Range UHF RFID Parking System with Vehicle Access Control and Remote Wired RS485 Control
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | SEWO |
| Model Number | T911 , T902 |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Load Capacity | Long Range UHF Reader | Control Type | Remote/ Wired/ RS485 |
|---|---|---|---|
| Operation Mode | Remote Controller ; RFID Tags | Communication Protocol | TCP/ IP / RS232/ RS485/ Weigand26 |
| Processor | 32bit Cortex-M3 | Reading Speed | 10-40 Km/h |
| Reading Distance | 1-15 M (adjustable) | Excitation Angle | 120° |
| Output Mode | WG26/WG34/RS485/RS232 | Power Supply | DC 12V/3A |
| Dimension | 255*255*55mm | 460*460*50mm | Working Frequency | ISM902~928MHz |
| Reading Distance Range | 1-6 Meters | 6-12 Meters | Operating Temperature | -30 °C ~ +70 °C |
| Working Environment | Indoor, Outdoor | ||
| Highlight | Long Range UHF RFID Parking System,Vehicle Access Control Parking System,Remote Wired RS485 Parking System |
||
Product Description

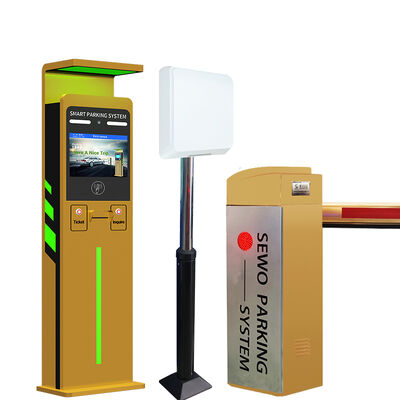

SEWO Automatic RFID Parking Equipment Card Parking Management System
Product Introduction

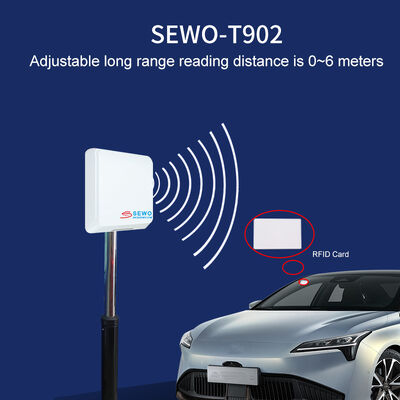

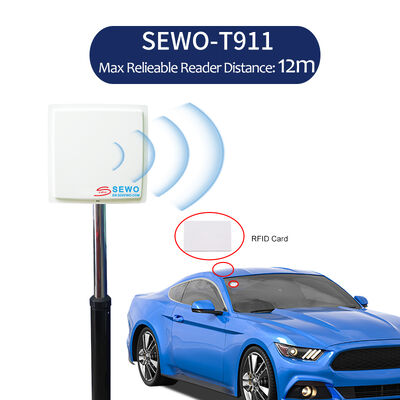

The SEWO RFID UHF Long Range Reader for Parking Lot Management is a high-performance Multiple Protocol UHF RFID Reader. Utilizing proprietary digital signal processing algorithms, it supports fast tag read/write operations with high identification rates. Ideal for various RFID applications including logistics, access control, attendance systems, anti-counterfeit measures, and industrial production process control.
Key Features
- Optical excitation, CDMA, sleep/wake up, wireless communications, CPU automatic recognition
- 32bit Cortex-M3 Micro processor
- High reading speed - cards can be read at 10-40 km/h without vehicle stop
- Long range reading distance: 1-15 m (adjustable)
- 120° optical excitation range with excellent directivity
- Advanced CDMA communication technology prevents interference between adjacent lanes
- No need to stop or open windows to read cards
- Adjustable reading direction
- Output modes: WG26/WG34/RS485/RS232
Product Images

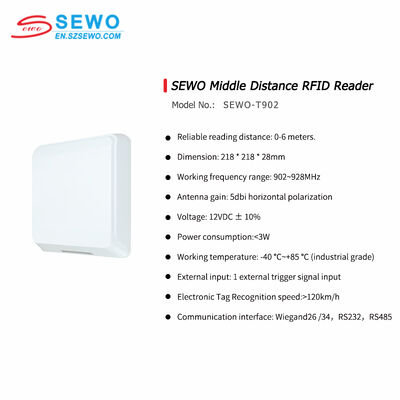

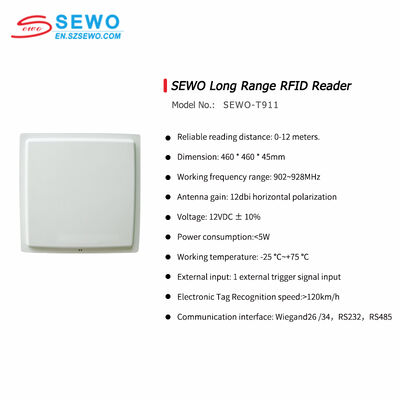

Technical Specifications
| Product Name: | SEWO Long Range UHF Reader |
|---|---|
| Model No.: | SEWO-T902 | SEWO-T911 |
| Power Supply: | DC 12V/3A |
| Dimension | 255*255*55mm | 460*460*50mm |
| Working Frequency | ISM902~928MHz |
| Reading Distance | 1-6 meters | 6-12 meters |
| Communication Port | WG26/WG34/RS485/RS232 |
| Operating Temperature | -30°C ~ +70°C |
| Working Environment | Indoor, Outdoor |
Company Profile
Shenzhen Sewo Technology Ltd. is a professional high-tech enterprise specializing in the development, manufacturing, marketing, and service of Smart Parking Management Systems, Flap Barriers, Tripod Turnstiles, Swing Gates, Parking Guidance Systems, Barrier Gates, Parking Locks, and Access Control Systems.
Founded in 2003, our brand "SEWO" ranks among China's top 10 parking system brands. With nearly two decades of steady development, our R&D team continuously creates high-quality products and services. Our products are certified with "CE" and "ISO9001:2008" standards and serve customers worldwide including enterprise institutions, government agencies, transportation companies, and commercial organizations.
We have established extensive sales and service networks across Southeast Asia, the Middle East, Africa, Europe, and America. Committed to "Sincerity as the essence of enterprise; High quality as the way of existence," we welcome global customers and agents to join us in building an intelligent, safe, and convenient society.
Frequently Asked Questions
What is the strength of your company in this industry?
Our company has focused on innovation since its foundation in 2003. The SEWO brand ranks among China's top 10 parking system brands, recognized for quality and reliability.
What are your advantage products?
We specialize in comprehensive parking and access control solutions including Smart Parking Management Systems, Flap Barriers, Turnstiles, Swing Gates, and related security products.
How about the quality of your products?
Our products meet "CE" and "ISO9001:2008" international standards. We've received honors including "China Top 10 Parking Management System Supplier" and "AAA grade quality enterprise."
Do you support customization requests?
We offer OEM/ODM services with over 20 years of industry experience, providing not just products but complete smart access management solutions.
What is your after-sales service policy?
We provide lifetime technical support through our global network of branch offices and agents across Southeast Asia, the Middle East, Africa, Europe, and America.
What is your delivery time?
Regular products ship in 5-10 working days. Customized products typically require 15-20 working days, depending on specifications.
