UHF Middle Distance Reader RFID Tags Smart Parking System Vehicle Parking Lots Wireless Communications

  • UHF Middle Distance Reader RFID Tags Smart Parking System Vehicle Parking Lots Wireless Communications
  • UHF Middle Distance Reader RFID Tags Smart Parking System Vehicle Parking Lots Wireless Communications
  • UHF Middle Distance Reader RFID Tags Smart Parking System Vehicle Parking Lots Wireless Communications
  • UHF Middle Distance Reader RFID Tags Smart Parking System Vehicle Parking Lots Wireless Communications
Place of Origin China
Brand Name SEWO
Certification CE，IS09001
Model Number SEWO-T902
Document Product Brochure PDF
Minimum Order Quantity 1 lane
Price Negotiable
Packaging Details wooden box
Delivery Time 5-7 working days
Payment Terms T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability 2000 sets per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Long-range RFID Parking System Power Supply DC 12V/3A
Antenna Gain 5dbi Horizontal Polarization Working Frequency 902~928 MHZ
Recognition Speed >120km/h Reading Distance 0-6 Meters Adjustable
Response Time 0.1 Seconds Reading Speed 0.2 Seconds
Waterproof IP67
Highlight

RFID Tags Smart Parking System

,

Wireless Communications UHF Parking System

,

Vehicle Parking Lots UHF Parking System
Leave a Message
Product Description

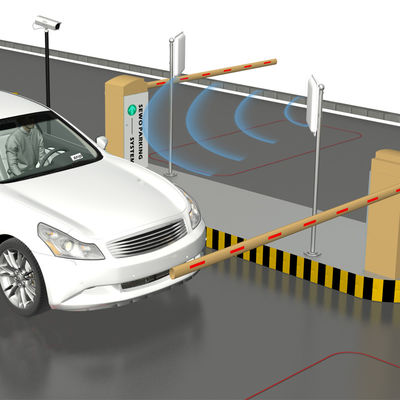

UHF Middle Distance Reader RFID Tags Smart Parking System Vehicle Parking Lots Wireless Communications

Discriptions of Long Distance Range Parking System:

    SEWO RFID UHF Long Lange Reader for Parking Lot Management UHF reader is a high performance Multiple Protocol UHF RFID Reader. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write the tag and stickers and operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, attendance system, anti-counterfeit and industrial production process control system.



Advantage of SEWO UHF Parking System:

1. Optical excitation, CDMA, sleep/wake up, wireless communications, CPU automatic recognition and so on cutting-edge high-tech crystal
2. Working frequency range: 902~928MHz
3. High Reading speed, card can be read in 120km/h without vehicle stop
4. Long range reading distance, 0~6 m
5. With good directivity, optical excitation range can be up to 120°
6. Advanced CDMA communication technology is used and no interference between adjacent lane
7. Communication interface: Wiegand 26/34/42 /44; RS232; RS485 10/100M Ethernet (optional)
8. External input: 1 external trigger signal input
9. Supporting protocol: ISO-18000-6C (EPCG2)



Specifications of Small UHF Bluetooth Parking System:

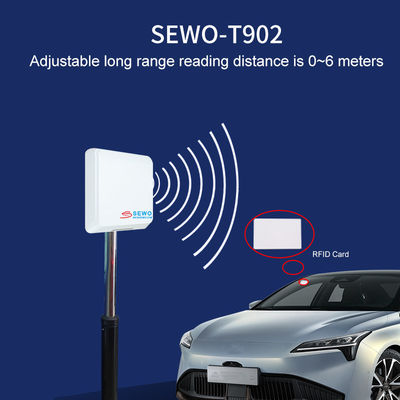

Product Name SEWO-T902
Dimension 218 * 218 * 28mm
Power Supply DC 12V/3A
Working mode read-only type
Operating frequency ISM902~928MHz
Support tag protocol EPC C1 GEN2
Communication speed up to 115200bps
Communication interface wiegand26/34, RS232, RS485, LAN (RJ45, TCP/IP)
Recognition distance 0-6m, max to 6m
Working temperature -20 ℃~+70 ℃
Storage temperature -40 ℃~+85 ℃



Features:
  1. Reading Distance: 0~6 meters, max to 6m
  2. In hand or vehicle-mounted auto reading, dual reading mode
  3. Access control cards can be affixed to the back of the card for “One-Card System”
  4. Passwords, license plates and other coded information can be stored
  5. Battery: CR3240 button cell
  6. Battery Life: 505,000 (handheld)
  7. Working Mode: read-write in real time (with CDMA module)

UHF Middle Distance Reader RFID Tags Smart Parking System Vehicle Parking Lots Wireless Communications 0



FAQ

1, What is the strength of your company in this industry?
Our company pays much attention to bringing and developing new technique and products since the foundation in 2003. Our brand “SEWO” has ranked among the top 10 famous brands of car parking systems and facilities in China.



2, What is the advantage products of your company?
Shenzhen Sewo Technology Ltd. Is a professional high-tech enterprise, which integrates the development, manufacturing, marketing , and service of Smart Parking Management System, Flap Barrier, Tripod Turnstile, Swing Gate, Parking Guidance System, Barrier Gate, Parking Lock, Access Control Systems and other related security products.



3, How about the quality of your product?
With our exquisite technology and strict quality testing system, we passed “CE” and “ISO9001:2008” international quality assessment standards. Our company also has won many honors,such as “China Top 10 Parking Management System Supplier”, “AAA grade quality, service and prestige enterprise in China”, and so on. Professional R&D team has strong capacity to be committed to continuously creating high quality products and service.



4, How about some customization request?
We support OEM / ODM service , more than 20 years industry experience will bring appropriate design for you, no only products, but also a smart access management solution expert.



5, Do you have agency for after-sales service?
Any question about products , you can find our sales anytime. We will provide life-time technology support. We have established many branch offices and gained much agents at home. Our sales and service network spreads all over the world. We also have extensive sales channels in Southeast Asia, the Middle East, Africa, Europe, and America. We warmly welcome customers or agents all over the world to join us to construct an intelligent , safe, convenient and harmonious society.



6, How about the delivery time?
Regular products need 5-10 working days.
The delivery time of customized products is according to your requirement.
