LED Parking Entrance And Exit Signs , Vertical Entrance LED Parking Display

Brand Name:	SEWO
Model Number:	SEWO-CW6
MOQ:	1 lane
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability:	2000 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE，IS09001

Document:

Product Brochure PDF

Product Name:

Vertical Entrance LED Display

Type:

Ultrasonic Parking Guidance System

Warranty:

1 Years

Communication:

RS485

Sensor:

Ultrasonic

Operation Mode:

Button+IC Card

Installtion:

Forward Mounted

Material:

ABS

Application:

Indoor,Auto Parking,Airports,IT Parks,Hospitals

Packaging Details:

wooden box

Supply Ability:

2000 sets per month

Highlight:

LED Parking Entrance And Exit Signs

Vertical LED Parking Display

Entrance LED Parking Display

Product Description

Vertical Entrance LED Display for Ultrasonic Car Parking Guidance System

Discriptions of Parking Guidance Screen:

In cities, large scale car parks with thousands of spaces are more and more common. However, we still very often have trouble parking cars—circle around with no guarantee to park,especially during busy hours. Emerge as the require, SEWO PGS in designed to pinpoint available parking spaces and lead drivers to park, reduce the time doing parking and maximize car park usage.

The Parking guidance system (PGS) is a technology-based solution that helps drivers find available parking spaces in parking lots or garages. It utilizes various sensors, signs, and software to provide real-time information on parking availability and guide drivers to the nearest vacant spots.

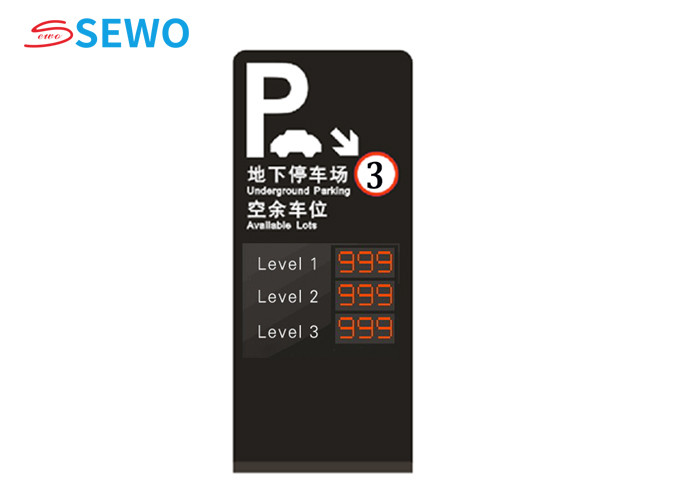

The parking guidance screen is composed of high brightness LED modules, driving circuits, power supply, shell, and other parts. It is installed at each entrance of the parking lot to display the remaining parking space information in the parking lot. It receives the parking information of the node controller through the RS485 bus, displays the number of empty parking Spaces in each district in real time, and prompts the vehicle driver who is ready to enter, and uses it 24 hours a day.

Features of Parking LED Screen:

The product with a simple and atmospheric appearance;
A waterproof and dustproof shell, and is coated with UV resistant paint, which is not easy to change color;
Low-power,short-circuit protection,overvoltage protection,overcurrent protection, overload protection,etc;
LED adopts a high brightness design, which is clearly visible under strong light, with a long visible distance and a wide viewing angle;
According to on-site requirements, the number of layers of LED modules can be matched to increase or decrease.

Specifications of Parking Guidance System:

Product Name	Vertical Entrance LED Display
Model No.	SEWO-DPS-5520
Dimension:	2000 * 850 * 150mm
LED Screen Size	488 * 244mm
Working Voltage	DC5V
Working Environment	indoor, underground

How does the Parking Guidance System work?

A. Vehicle sensors are installed at each stall to detect and indicate real-time occupancy. A red LED indicates the stall is

occupied, and a green LED indicates the stall is available.

B. The APGS system continuously and automatically updates parking information on dynamic signs to direct patrons to available parking stalls.

C. Dynamic signs are installed in the building helix. Drivers can effortlessly know where to go once enter into the parking lot

with just an easy glance of the Dynamic Signs which tells how many parking slots are available in each direction/ zone/ floor.

D. Real-time parking status is displayed on computers running APGS software. With visualized graphic user interface, parking management becomes easier than ever. The status of each sensor, dynamic sign, and relevant gates can be monitored and manually controlled through this interface effortlessly. The software could export statistics to avail parking analysis and management.

The Working Principle of SEWO CW6 Parking Guidance System

----- The Ultrasonic sensor and Bay Indicator are installed on top of each parking slot. detect and Indicate the presence of the parking space
----- Data colllector picks up the information from the ultrasonic sensors
----- Central controller completes the data processing then send the processed parking space data to every LED sector display in the carpark to display the information of available parking space
----- LED sector display shows how many parking space available and the directions
----- Software shows the real-time parking space information
----- General display installed near the Entrance to show the total parking space information inside the parking system

Applications:

The turnstiles are mainly used in parks, subway, customers, airport, bus station, office building, scenic spot, community, attractions, and exhibition hall doors, residential, Construction Sites, Industrial Plants, Marquee Golf Tournaments, State Fairs, Special Sporting Events and Festivals!

LED Parking Entrance And Exit Signs , Vertical Entrance LED Parking Display 0

FAQ

1, What is the strength of your company in this industry?

Our company pays much attention to bringing and developing new technique and products since the foundation in 2003. Our brand “SEWO” has ranked among the top 10 famous brands of car parking systems and facilities in China.

2, What is the advantage products of your company?

Shenzhen Sewo Technology Ltd. Is a professional high-tech enterprise, which integrates the development, manufacturing, marketing , and service of Smart Parking Management System, Flap Barrier, Tripod Turnstile, Swing Gate, Parking Guidance System, Barrier Gate, Parking Lock, Access Control Systems and other related security products.

3, How about the quality of your product?

With our exquisite technology and strict quality testing system, we passed “CE” and “ISO9001:2008” international quality assessment standards. Our company also has won many honors,such as “China Top 10 Parking Management System Supplier”, “AAA grade quality, service and prestige enterprise in China”, and so on. Professional R&D team has strong capacity to be committed to continuously creating high quality products and service.

4, How about some customization request?

We support OEM / ODM service , more than 20 years industry experience will bring appropriate design for you, no only products, but also a smart access management solution expert.

5, Do you have agency for after-sales service?

Any question about products , you can find our sales anytime. We will provide life-time technology support. We have established many branch offices and gained much agents at home. Our sales and service network spreads all over the world. We also have extensive sales channels in Southeast Asia, the Middle East, Africa, Europe, and America. We warmly welcome customers or agents all over the world to join us to construct an intelligent , safe, convenient and harmonious society.

6, How about the delivery time?

Regular products need 5-10 working days.

The delivery time of customized products is according to your requirement.
