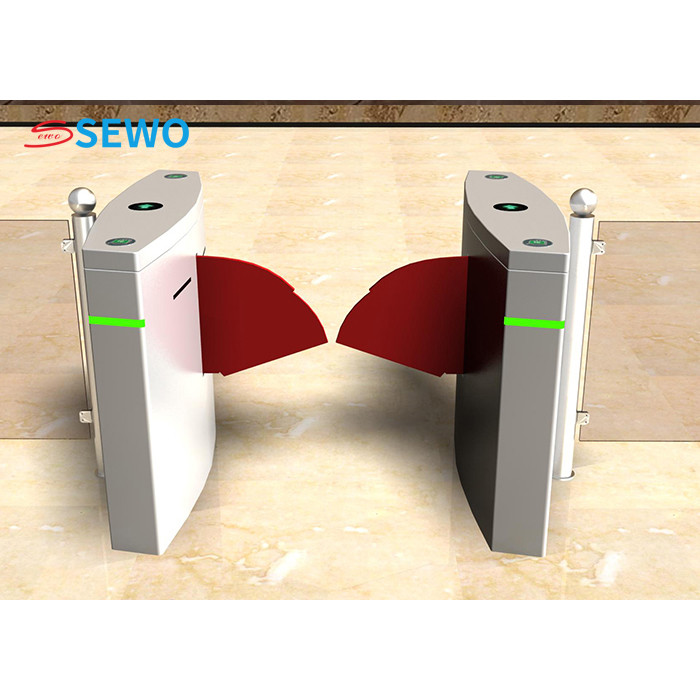

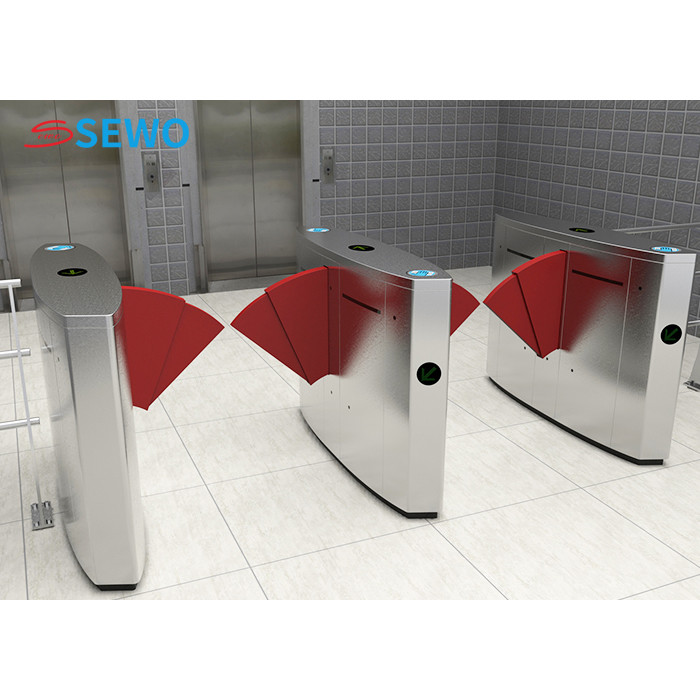

SEWO High-End Flap Barrier Gates Widened Passageway Automated Turnstiles
| Place of Origin | China |
|---|---|
| Brand Name | SEWO |
| Certification | CE，ISO9001 |
| Model Number | SEWO-Y2-300 |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 lane |
| Price | Negotiable |
| Packaging Details | wooden box |
| Delivery Time | 5-7 working days |
| Payment Terms | T/T, Western Union, MoneyGram, L/C, D/A, D/P |
| Supply Ability | 2000 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | High Speed Flap Barrier Turnstile | Type | Ultra Wide Flap Barrier Gate |
|---|---|---|---|
| Passage Width | 600-900 Mm | Dimension | 1500* 300* 1000 Mm |
| Power Supply | AC 220V | Communication | RS485 TCP / IP,RS 232 / 485 |
| Warranty | 12 Months | Application | Airport,Office,hotel,supermarket,hospital,subway |
| Unlock Time | 0.3 Second | Passing Speed | 45 People/min |
| Working Environment | Indoor; Outdoor | Color | Optional,Stainless Steel Color |
| Highlight | Passageway Automated Turnstiles,Widened Automated Turnstiles |
||
Product Description
Entrance Barrier Systems Flap Gate Barrier Widened Passageway Automated Gate Systems
Discriptions of Widened Barrier Gate :
Widened flap barrier gate is a specially designed turnstile gate that increases the width of the gate passage to accommodate a wider flow of people.
- Channel width increase: Compared to ordinary wing gates, widened wing gates can have a channel width of up to 550mm-900mm, or even wider, to meet the needs of people carrying large luggage or special equipment.
- Strong adaptability: Suitable for places such as airports, train stations, subway stations, hospitals, schools, scenic spots, etc. that need to handle a large number of people and logistics.
- High safety: Advanced anti pinch technology and safety sensors are used to ensure that there is no harm to the human body or objects during the passage process.
- High degree of intelligence: It can integrate multiple recognition methods such as facial recognition, fingerprint recognition, and QR code recognition to achieve fast passage and identity verification.
Specifications of High Speed Flap Barrier Gate :
| Product Name | Ultra Wide Flap Barrier Gate Series |
| Model No. | SEWO-Y2-300 |
| Housing Material | 304 stainless steel |
| Swing Arm Material | PMMA or Tempered glass |
| Passing Width: | 600-900 mm |
| Product Size(L*W*H) | 1500×300×1000mm |
| Unlock time | 0.3s |
| Infrared detection | 12 Pairs |
| Passing Speed | 45 people/ minute |
| Driving Motor | 24V Brushless DC motor |
| Working Voltage | 220V; 50Hz |
| MCBF | ≥ 10,000,000 times |
Applications:
Widely used in squares, stadiums, gyms, hotel, commercial building, offices , hospital , schools , factories, government agencies, bank, dormitory, library,shopping malls, supermarkets and so on.
- Airport: Used for baggage claim areas, security checkpoints, and other areas where large luggage needs to be handled and there is a high volume of people.
- Train/subway station: used for areas that require fast passage such as entrances and exits, transfer passages, etc.
- Hospital: Used for emergency rooms, operating rooms, and other areas that require rapid handling of emergency situations.
- School: Used for places such as libraries and gyms that require controlled flow of people and goods.
- Scenic area: used for areas such as entrances and exits that require quick ticket checking and passage.
FAQ
1, What is the strength of your company in this industry?
Our company pays much attention to bringing and developing new technique and products since the foundation in 2003. Our brand “SEWO” has ranked among the top 10 famous brands of car parking systems and facilities in China.
2, What is the advantage products of your company?
Shenzhen Sewo Technology Ltd. Is a professional high-tech enterprise, which integrates the development, manufacturing, marketing , and service of Smart Parking Management System, Flap Barrier, Tripod Turnstile, Swing Gate, Parking Guidance System, Barrier Gate, Parking Lock, Access Control Systems and other related security products.
3, How about the quality of your product?
With our exquisite technology and strict quality testing system, we passed “CE” and “ISO9001:2008” international quality assessment standards. Our company also has won many honors,such as “China Top 10 Parking Management System Supplier”, “AAA grade quality, service and prestige enterprise in China”, and so on. Professional R&D team has strong capacity to be committed to continuously creating high quality products and service.
4, How about some customization request?
We support OEM / ODM service , more than 20 years industry experience will bring appropriate design for you, no only products, but also a smart access management solution expert.
5, Do you have agency for after-sales service?
Any question about products , you can find our sales anytime. We will provide life-time technology support. We have established many branch offices and gained much agents at home. Our sales and service network spreads all over the world. We also have extensive sales channels in Southeast Asia, the Middle East, Africa, Europe, and America. We warmly welcome customers or agents all over the world to join us to construct an intelligent , safe, convenient and harmonious society.
6, How about the delivery time?
Regular products need 5-10 working days.
The delivery time of customized products is according to your requirement.
