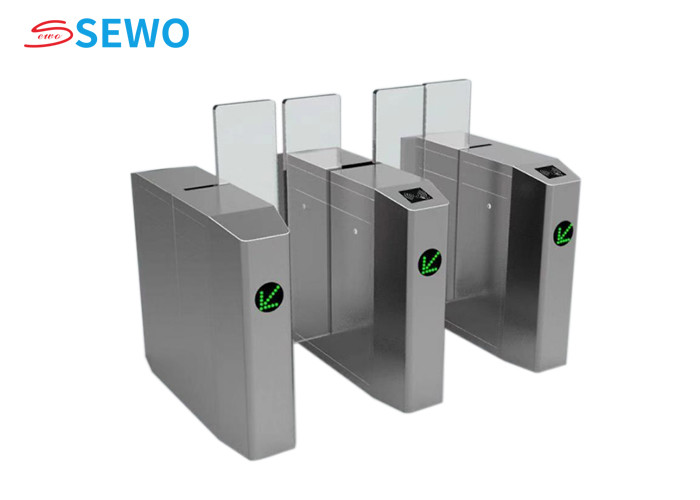

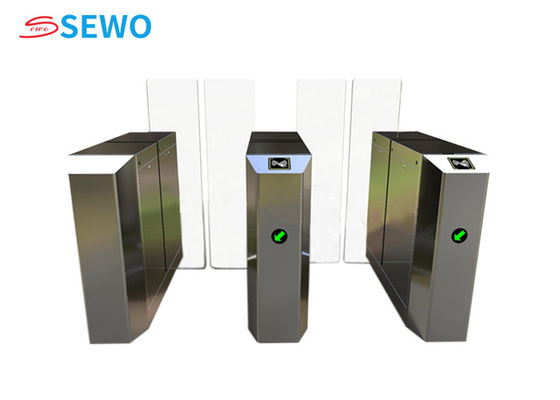

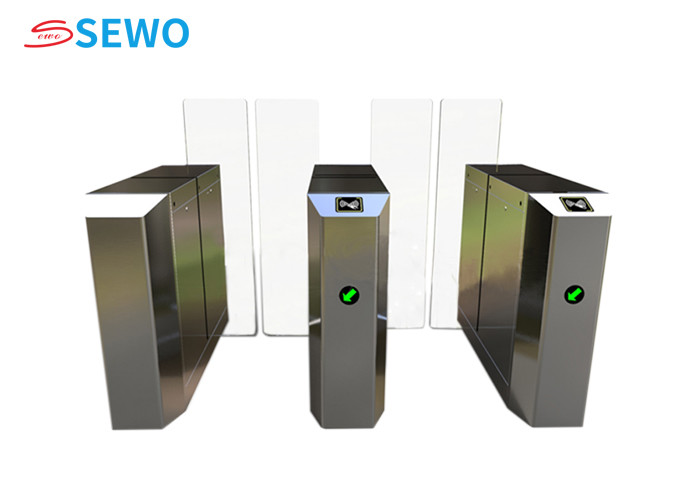

Motorised Sliding Gate Turnstile RFID Card Reader Pedestrian Access Control System

Sliding Turnstile Gate RFID Card Reader Pedestrian Access Control System

Discriptions of Sliding Turnstile Gate:

    The Motorised sliding gate is typically used for Pedestrian Movement in factories, Offices, Amusement Parks, Museums, and Movie Theatres etc. The Swing Gate is offered with a Brushed DC Motor for the movement of the Swing Arm and can be integrated with varied access Control Systems. The Drive offers an MCBF of 3 Mil Cycles and is ideal for indoor application but nevertheless can be deployed outside a building under a canopy for protection from the elements. The Swing gate though can process high numbers of people it for handicap movement and hence would offer much lower throughput as against what has been indicated above. The Gate is offered in both SS-304 & Mild Steel Powder-coated versions.

Features of Sliding Turnstile Gate:

• Problem-self-checking function.
• Many options of working ways: bi-direction card reading; one direction card reading and another no reading; one direction card reading and another freely. And single direction photocell controlled passing and close. Working ways can be set in the control panel.
• When power off, arm open automatically and power on again, arm will be held automatically.
• When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in the control panel.
• Auto-reposition function: After card read, passenger not pass within regulated time period, full-height turnstile will cancel this passing right. And the regulated time period for passing can be set by managers.
• If passenger pass without card read or valid card read, flap barrier will alarm untill passenger get back from the flap barrier and then take a valid card to be read for passing.
• Swing barrier is with 485 interface for long-distrance control concern.
• Anti-rush function: if there is no open single, arm will be holding tightly.
• Double anti-clipping function: photocell anti-clipping and mechanical anti-clipping.When passenger is going through the swing barrier, photocell will detect out this situation and will not close. After passenger passed, arm will close automatically. During its reposition, if arm meets any obstacle, arm will get back automatcially or stop working for a while with very slight force. Also it will alarm.
• Flap barrier is with standard electrical interface for the integration of various readers and writers.
• Swing barrier can count how many passenger has passed and will show it in the LED display.
• Direction display to guide passenger which direction is to go.
• Card-reading with memory or without memory function.
• Flap barrier can control the population inside in the control of software.
• Stable running with little noise.

Specifications of Sliding Turnstile Gate:

Applications:

   The turnstiles are mainly used in parks, subway, customers, airport, bus station, office building, scenic spot, community, attractions, and exhibition hall doors, residential, Construction Sites, Industrial Plants, Marquee Golf Tournaments, State Fairs, Special Sporting Events and Festivals!
